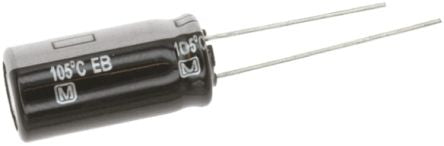

Panasonic 470μF 10V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 15mm +105°C 8mm 3.5mm [EEUEB1A471]; 747-2039
by Panasonic
0₫
Mã kho: 7472039
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 10 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 15mm |
| Height | 15mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.5mm |
| Lifetime | 10000h |
| Series | EB(A) |
| Leakage Current | 47 μA |
| Ripple Current | 278mA |
| Tolerance | ±20% |
