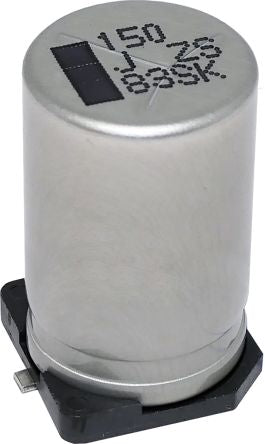

Panasonic 150μF 63V dc Hybrid Aluminum Electrolytic Capacitor, Surface Mount 11 x 10.3 x 16.5mm +125°C 10mm 11mm [EEHZS1J151P]; 181-2289
by Panasonic
0₫
Mã kho: 1812289
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 63 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 11 x 10.3 x 16.5mm |
| Height | 16.5mm |
| Length | 11mm |
| Depth | 10.3mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +125°C |
| Lifetime | 4000h |
| Series | ZS |
| Tolerance | ±20% |
| Leakage Current | 3 μA |
| Polarised | Polar |
| Dissipation Factor | 0.0008 |
| Ripple Current | 3.5A |
| Automotive Standard | AEC-Q200 |
| Equivalent Series Resistance | 15mΩ |
