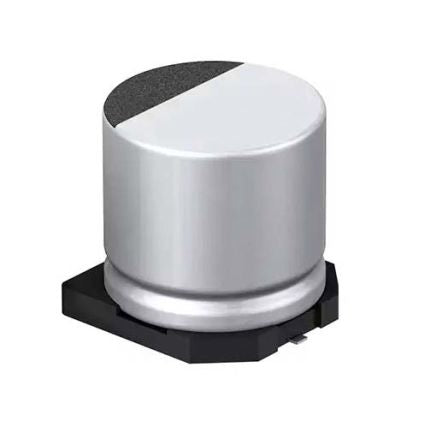

Panasonic 330μF 25V dc Hybrid Aluminum Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +145°C 10mm 4.6mm [EEHZE1E331P]; 145-8530
by Panasonic
0₫
Mã kho: 1458530
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +145°C |
| Lead Pitch | 4.6mm |
| Lifetime | 2000 h, 4000 h |
| Series | ZE |
| Tolerance | ±20% |
| Automotive Standard | AEC-Q200 |
| Leakage Current | ≤0.01 CV μA, 3 μA |
| Polarised | Polar |
| Dissipation Factor | 0.0014 |
| Equivalent Series Resistance | 20mΩ |
| Ripple Current | 2000mArms |
