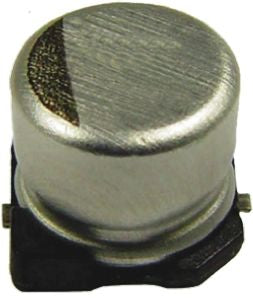

Panasonic 150μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 x 10.2mm +125°C 8mm 3.1mm [EEHZC1V151P]; 103-5158
by Panasonic
0₫
Mã kho: 1035158
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 8 x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 3.1mm |
| Lifetime | 4000h |
| Series | ZC |
| Leakage Current | 0.01 CV or 3 μA (After 2 min) |
| Polarised | Polar |
| Ripple Current | 1900mArms |
| Tolerance | ±20% |
| Equivalent Series Resistance | 27mΩ |
