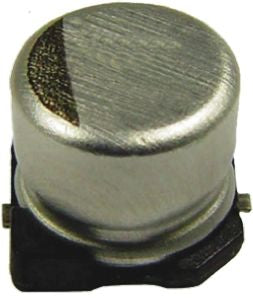

Panasonic 33μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 x 7.7mm +125°C 6.3mm 1.8mm [EEHZC1H330XP]; 758-1095
by Panasonic
0₫
Mã kho: 7581095
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 33 µF |
Voltage | 50 V dc |
Mounting Type | Surface Mount |
Technology | Hybrid |
Dimensions | 6.3 x 7.7mm |
Height | 7.7mm |
Minimum Operating Temperature | -55°C |
Diameter | 6.3mm |
Maximum Operating Temperature | +125°C |
Lead Pitch | 1.8mm |
Lifetime | 1000 h, 4000 h |
Series | ZC |
Tolerance | ±20% |
Equivalent Series Resistance | 40mΩ |
Leakage Current | 0.01 CV or 3 μA (After 2 min) |
Ripple Current | 1100mArms |
Polarised | Polar |
