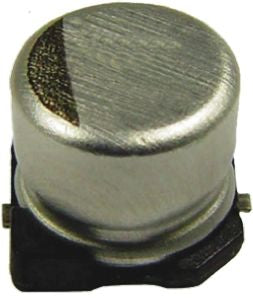

Panasonic 33μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 5 x 5.8mm +125°C 5mm 1.5mm [EEHZC1E330R]; 758-1051
by Panasonic
0₫
Mã kho: 7581051
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 33 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 5 x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +125°C |
| Lead Pitch | 1.5mm |
| Lifetime | 1000 h, 4000 h |
| Series | ZC |
| Polarised | Polar |
| Equivalent Series Resistance | 80mΩ |
| Leakage Current | 0.01 CV or 3 μA (After 2 min) |
| Ripple Current | 550mArms |
| Tolerance | ±20% |
