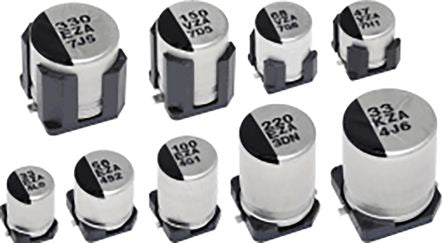

Panasonic 47μF 35V dc Hybrid Conductive Polymer Aluminium Capacitor, Surface Mount 6.3 Dia. x 5.8mm +105°C 6.3mm [EEHZA1V470P]; 179-3612
by Panasonic
0₫
Mã kho: 1793612
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 6.3 Dia. x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 1000h |
| Series | ZA |
| Automotive Standard | AEC-Q200 |
| Ripple Current | 1.3A |
| Polarised | Polar |
| Leakage Current | 3 μA |
| Equivalent Series Resistance | 60mΩ |
| Tolerance | ±20% |
| Dissipation Factor | 0.0012 |
