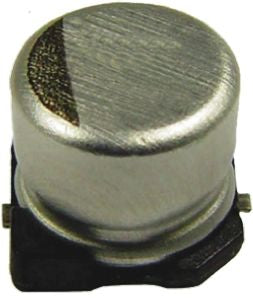

Panasonic 220μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 8 x 10.2mm +105°C 8mm 3.1mm [EEHZA1E221P]; 758-1244
by Panasonic
0₫
Mã kho: 7581244
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Hybrid |
| Dimensions | 8 x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.1mm |
| Lifetime | 10000h |
| Series | ZA |
| Equivalent Series Resistance | 27mΩ |
| Ripple Current | 2300mArms |
| Leakage Current | 55 μA |
| Tolerance | ±20% |
| Polarised | Polar |
