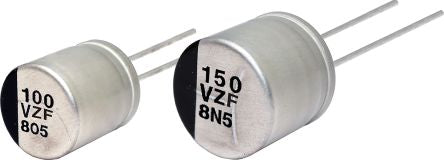

Panasonic 270μF 25V dc Aluminium Polymer Capacitor, Through Hole 10 Dia. x 9.5mm +150°C 10mm 5mm [EEHAZF1E271]; 178-0983
by Panasonic
0₫
Mã kho: 1780983
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 270 µF |
| Voltage | 25 V dc |
| Mounting Type | Through Hole |
| Technology | Hybrid |
| Dimensions | 10 Dia. x 9.5mm |
| Height | 9.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +150°C |
| Lead Pitch | 5mm |
| Lifetime | 1000h |
| Series | ZF |
| Automotive Standard | AEC-Q200 |
| Ripple Current | 1Arms |
| Dissipation Factor | 0.0014 |
| Equivalent Series Resistance | 20mΩ |
| Leakage Current | 67.5 μA |
| Polarised | Polar |
| Tolerance | ±20% |
