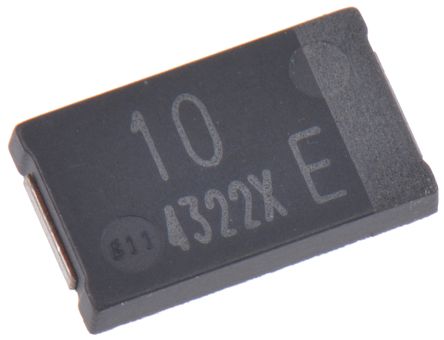

Panasonic 10μF 25V dc Aluminium Polymer Capacitor, Surface Mount 7.3 x 4.3 x 1.1mm +105°C 7.3mm [EEFCS1E100R]; 866-3659
by Panasonic
0₫
Mã kho: 8663659
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 25 V dc |
| Mounting Type | Surface Mount |
| Technology | Polymer |
| Dimensions | 7.3 x 4.3 x 1.1mm |
| Height | 1.1mm |
| Length | 7.3mm |
| Depth | 4.3mm |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Series | SP-Cap CS |
| Ripple Current | 3.2Arms |
| Tolerance | ±20% |
| Equivalent Series Resistance | 40mΩ |
| Leakage Current | 75 μA |
| Polarised | Polar |
