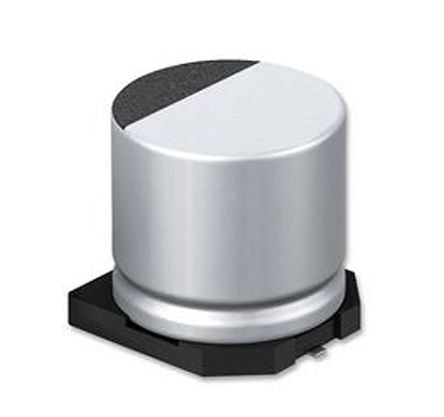

Panasonic 470μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +125°C 10mm 4.6mm [EEETC1C471P]; 133-1957
by Panasonic
0₫
Mã kho: 1331957
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 470 µF |
Voltage | 16 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 10 (Dia.) x 10.2mm |
Depth | 10.2mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +125°C |
Lifetime | 3000h |
Lead Pitch | 4.6mm |
Series | TC |
Polarised | Polar |
Dissipation Factor | 0.0023 |
Ripple Current | 750mArms |
Leakage Current | ≤0.01 CV μA |
Tolerance | ±20% |
Equivalent Series Resistance | 0.15 Ω @ +20 °C, 2 Ω @ -40 °C |
