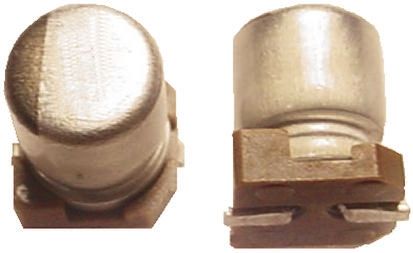

Panasonic 10μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 4 (Dia.) x 5.8mm +105°C 4mm [EEEHD1C100AR]; 569-124
by Panasonic
0₫
Mã kho: 569124
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 4 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 4mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Series | HD SMD |
| Equivalent Series Resistance | 800mΩ |
| Polarised | Polar |
| Ripple Current | 28mA |
| Leakage Current | 3 μA |
| Tolerance | ±20% |
