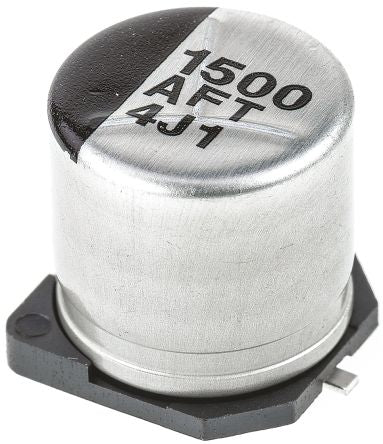

Panasonic 1500μF 10V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +105°C 10mm 4.6mm [EEEFT1A152AP]; 103-4757
by Panasonic
0₫
Mã kho: 1034757
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1500 µF |
| Voltage | 10 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.6mm |
| Lifetime | 2000h |
| Series | FT SMD |
| Leakage Current | 150 μA |
| Polarised | Polar |
| Ripple Current | 1.19A |
| Equivalent Series Resistance | 60mΩ |
| Tolerance | ±20% |
