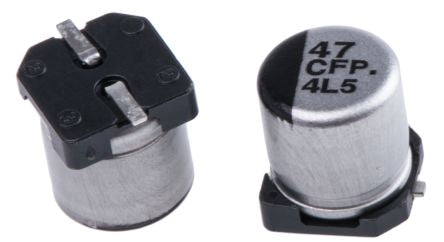

Panasonic 47μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 5 (Dia.) x 5.8mm +105°C 5mm [EEEFPC470UAR]; 107-1006
by Panasonic
0₫
Mã kho: 1071006
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Series | FP SMD |
| Ripple Current | 240mA |
| Equivalent Series Resistance | 360mΩ |
| Polarised | Polar |
| Tolerance | ±20% |
| Leakage Current | 3 μA |
