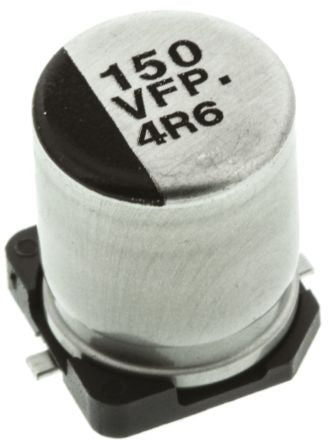

Panasonic 150μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.2mm +105°C 8mm [EEEFP1V151AP]; 568-903
by Panasonic
0₫
Mã kho: 568903
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 150 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 2000h |
| Series | FP SMD |
| Polarised | Polar |
| Leakage Current | 3 μA |
| Equivalent Series Resistance | 80mΩ |
| Tolerance | ±20% |
| Ripple Current | 850mA |
