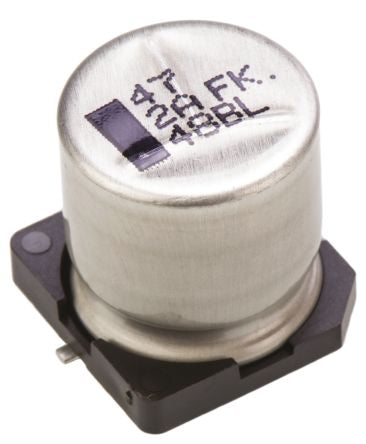

Panasonic 47μF 100V dc Aluminium Electrolytic Capacitor, Surface Mount 12.5 (Dia.) x 13.5mm +105°C 12.5mm [EEEFK2A470AQ]; 708-4008
by Panasonic
0₫
Mã kho: 7084008
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 100 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 12.5 (Dia.) x 13.5mm |
| Height | 13.5mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 5000h |
| Series | FK SMD |
| Ripple Current | 500mA |
| Polarised | Polar |
| Tolerance | ±20% |
| Equivalent Series Resistance | 320mΩ |
