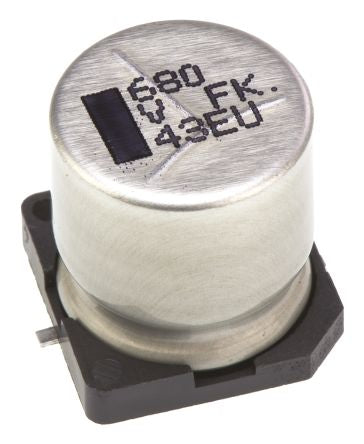

Panasonic 680μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 12.5 (Dia.) x 13.5mm +105°C 12.5mm [EEEFK1V681AQ]; 708-3917
by Panasonic
0₫
Mã kho: 7083917
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 680 µF |
Voltage | 35 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 12.5 (Dia.) x 13.5mm |
Height | 13.5mm |
Minimum Operating Temperature | -55°C |
Diameter | 12.5mm |
Maximum Operating Temperature | +105°C |
Lifetime | 5000h |
Series | FK SMD |
Equivalent Series Resistance | 60mΩ |
Polarised | Polar |
Tolerance | ±20% |
Ripple Current | 1.1A |
