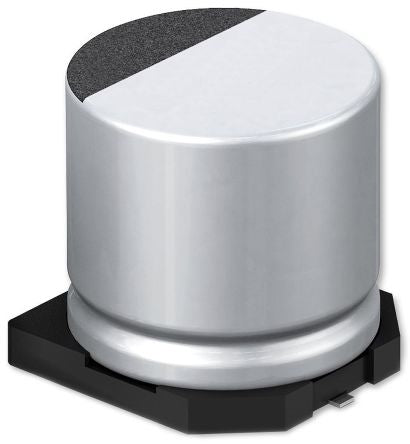

Panasonic 180μF 50V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 10.2mm +105°C 8mm 3.1mm [EEEFK1H181SP]; 106-2876
by Panasonic
0₫
Mã kho: 1062876
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 180 µF |
| Voltage | 50 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 10.2mm |
| Depth | 10.2mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.1mm |
| Lifetime | 2000h |
| Series | FKS |
| Leakage Current | 90 μA |
| Polarised | Polar |
| Dissipation Factor | 0.001 |
| Ripple Current | 350mA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 340mΩ |
