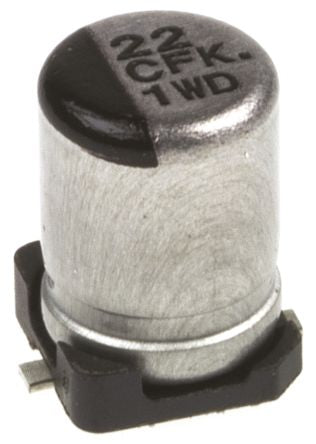

Panasonic 22μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 4 (Dia.) x 5.8mm +105°C 4mm 1mm [EEEFK1C220UR]; 537-0449
by Panasonic
0₫
Mã kho: 5370449
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 22 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 4 (Dia.) x 5.8mm |
| Height | 5.8mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 4mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 1mm |
| Lifetime | 2000h |
| Series | FK SMD |
| Ripple Current | 90mA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 1.35Ω |
| Leakage Current | 3.5 μA |
| Polarised | Polar |
