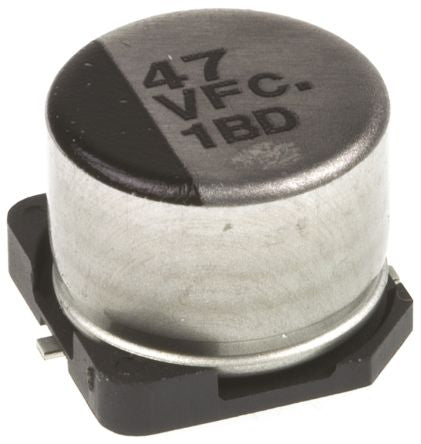

Panasonic 47μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 6.2mm +105°C 8mm 2.2mm [EEEFC1V470P]; 537-0398
by Panasonic
0₫
Mã kho: 5370398
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 47 µF |
Voltage | 35 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 8 (Dia.) x 6.2mm |
Height | 6.2mm |
Minimum Operating Temperature | -40°C |
Diameter | 8mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 2.2mm |
Lifetime | 1000h |
Series | FC SMD |
Tolerance | ±20% |
Ripple Current | 230mA |
Leakage Current | 16.4 μA |
Polarised | Polar |
