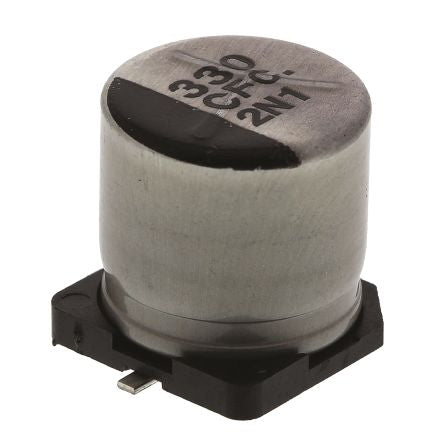

Panasonic 330μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +105°C 10mm 4.6mm [EEEFC1C331P]; 537-0174
by Panasonic
0₫
Mã kho: 5370174
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.6mm |
| Lifetime | 1000h |
| Series | FC SMD |
| Leakage Current | 52.8 μA |
| Ripple Current | 670mA |
| Tolerance | ±20% |
| Polarised | Polar |
