![Panasonic EEEFC1A151P 7478728](http://nguyenxuong.com/cdn/shop/products/F7478728-01_444x252.jpg?v=1594124326)

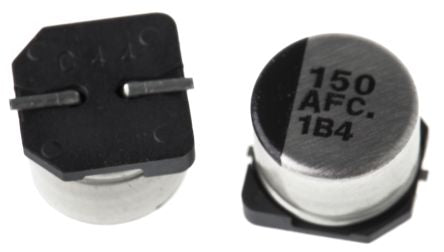

Panasonic 150μF 10V dc Aluminium Electrolytic Capacitor, Surface Mount 8 (Dia.) x 6.2mm +105°C 8mm 2.2mm [EEEFC1A151P]; 747-8728
by Panasonic
0₫
Mã kho: 7478728
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 150 µF |
Voltage | 10 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 8 (Dia.) x 6.2mm |
Height | 6.2mm |
Minimum Operating Temperature | -40°C |
Diameter | 8mm |
Maximum Operating Temperature | +105°C |
Lifetime | 1000h |
Lead Pitch | 2.2mm |
Series | FC SMD |
Ripple Current | 230mA |
Leakage Current | 15 μA |
Polarised | Polar |
Tolerance | ±20% |
