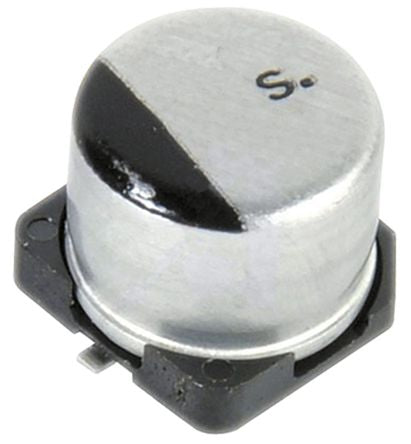

Panasonic 100μF 63V dc Aluminium Electrolytic Capacitor, Surface Mount 10 x 10.2mm +85°C 10mm [EEE1JA101P]; 166-7105
by Panasonic
0₫
Mã kho: 1667105
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 63 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Series | S |
| Leakage Current | 63 μA |
| Polarised | Polar |
| Tolerance | ±20% |
| Ripple Current | 60mArms |
