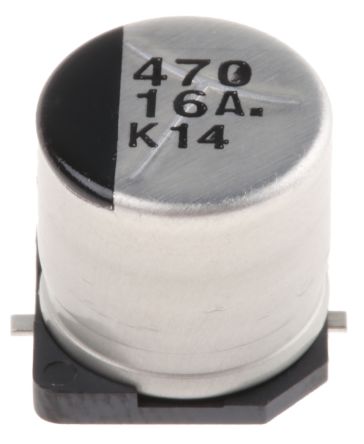

Panasonic 470μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 10 (Dia.) x 10.2mm +85°C 10mm [EEE1CA471P]; 628-4002
by Panasonic
0₫
Mã kho: 6284002
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 470 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 10.2mm |
| Height | 10.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Series | VS |
| Tolerance | ±20% |
| Ripple Current | 420mA |
| Leakage Current | 3 μA |
| Polarised | Polar |
