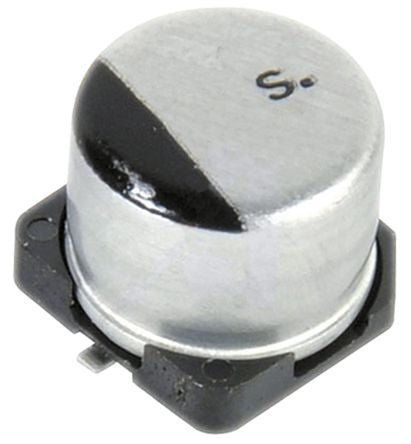

Panasonic 100μF 4V dc Aluminium Electrolytic Capacitor, Surface Mount 5 x 5.4mm +85°C 5mm [EEE0GA101SR]; 867-5570
by Panasonic
0₫
Mã kho: 8675570
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 100 µF |
| Voltage | 4 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5 x 5.4mm |
| Height | 5.4mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 1000h |
| Series | S |
| Polarised | Polar |
| Leakage Current | 4 μA |
| Ripple Current | 61mArms |
| Tolerance | ±20% |
