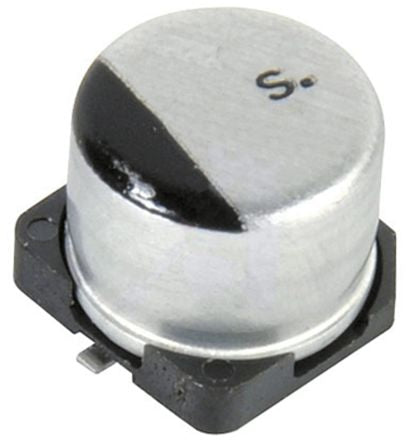

Panasonic 22μF 100V dc Aluminium Electrolytic Capacitor, Surface Mount 8 x 10.2mm +85°C 8mm 10.2mm [EEE-2AA220UP]; 807-8008
by Panasonic
0₫
Mã kho: 8078008
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 22 µF |
Voltage | 100 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 8 x 10.2mm |
Length | 10.2mm |
Minimum Operating Temperature | -40°C |
Diameter | 8mm |
Maximum Operating Temperature | +85°C |
Lifetime | 2000h |
Series | S(V) |
Leakage Current | 3 μA |
Polarised | Polar |
Tolerance | ±20% |
Ripple Current | 55mA |
