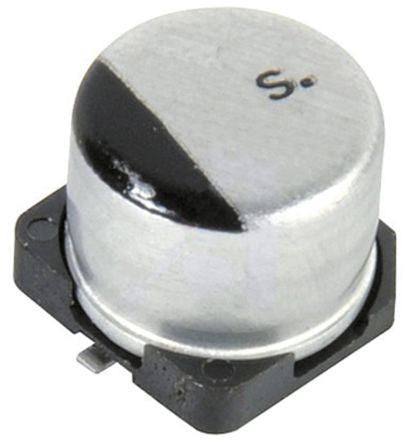

Panasonic 10μF 100V dc Aluminium Electrolytic Capacitor, Surface Mount 8 x 6.2mm +85°C 8mm 6.2mm [EEE-2AA100UP]; 807-8004
by Panasonic
0₫
Mã kho: 8078004
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 10 µF |
| Voltage | 100 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 x 6.2mm |
| Length | 6.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Series | S(V) |
| Ripple Current | 50mA |
| Polarised | Polar |
| Tolerance | ±20% |
| Leakage Current | 3 μA |
