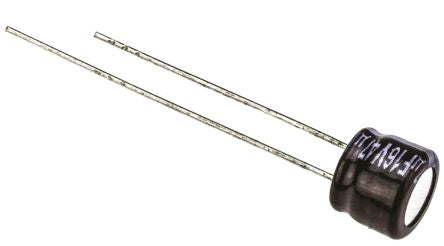

Panasonic 47μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 (Dia.) x 5mm +85°C 6.3mm 2.5mm [ECEA1CKS470]; 116-818
by Panasonic
0₫
Mã kho: 116818
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 6.3 (Dia.) x 5mm |
| Height | 5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 6.3mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 2.5mm |
| Lifetime | 1000h |
| Series | KS |
| Tolerance | ±20% |
| Leakage Current | 3 μA |
| Ripple Current | 70mA |
