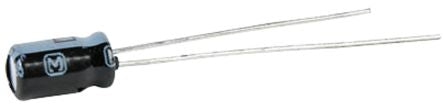

Panasonic 22μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 x 7mm +85°C 6.3mm 2.5mm 7mm [ECE-A1VKA220]; 807-3615
by Panasonic
0₫
Mã kho: 8073615
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 22 µF |
Voltage | 35 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 6.3 x 7mm |
Length | 7mm |
Minimum Operating Temperature | -40°C |
Diameter | 6.3mm |
Maximum Operating Temperature | +85°C |
Lead Pitch | 2.5mm |
Lifetime | 1000h |
Series | KA |
Tolerance | ±20% |
Ripple Current | 60mA |
Leakage Current | 3 mA |
