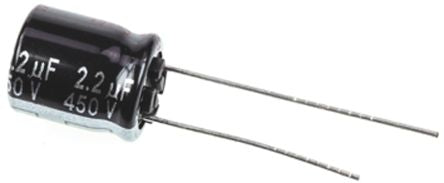

Panasonic 2.2μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 10 (Dia.) x 12.5mm +105°C 10mm 5mm [ECA2WHG2R2]; 920-3090
by Panasonic
0₫
Mã kho: 9203090
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2.2 µF |
| Voltage | 450 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 10 (Dia.) x 12.5mm |
| Height | 12.5mm |
| Minimum Operating Temperature | -25°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 2000h |
| Series | NHG |
| Ripple Current | 29mA |
| Tolerance | ±20% |
