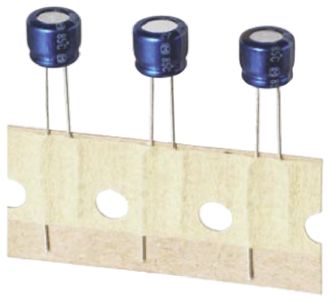

Panasonic 220μF 10V dc Aluminium Electrolytic Capacitor, Through Hole 8 (Dia.) x 5mm +85°C 8mm 0.5mm [ECA1AAD221X]; 727-0786
by Panasonic
0₫
Mã kho: 7270786
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 10 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 (Dia.) x 5mm |
| Height | 5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 1000h |
| Lead Pitch | 0.5mm |
| Series | AD-X |
| Tolerance | ±20% |
| Leakage Current | <=0.01 CV or 3 μA |
| Ripple Current | 120mA |
