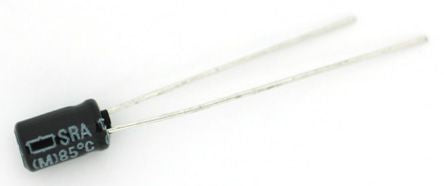

Nippon Chemi-Con 3.3μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 4.5 (Dia.) x 8mm +85°C 4.5mm 1.5mm [ESRA500ELL3R3MD07D]; 144-4005
0₫
Mã kho: 1444005
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3.3 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 4.5 (Dia.) x 8mm |
| Height | 8mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 4.5mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 1.5mm |
| Lifetime | 500h |
| Series | SRA |
| Tolerance | ±20% |
| Leakage Current | 3 μA |
| Dissipation Factor | 0.001 |
| Polarised | Polar |
| Ripple Current | 18mArms |
