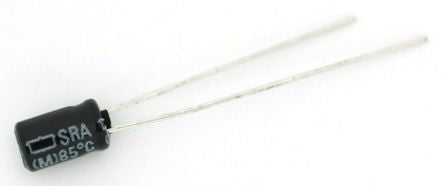

Nippon Chemi-Con 1μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 4.5 (Dia.) x 8mm +85°C 4.5mm 1.5mm [ESRA500ELL1R0MD07D]; 144-3987
0₫
Mã kho: 1443987
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 1 µF |
Voltage | 50 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 4.5 (Dia.) x 8mm |
Height | 8mm |
Minimum Operating Temperature | -40°C |
Diameter | 4.5mm |
Maximum Operating Temperature | +85°C |
Lead Pitch | 1.5mm |
Lifetime | 500h |
Series | SRA |
Ripple Current | 10mArms |
Leakage Current | 3 μA |
Polarised | Polar |
Tolerance | ±20% |
Dissipation Factor | 0.001 |
