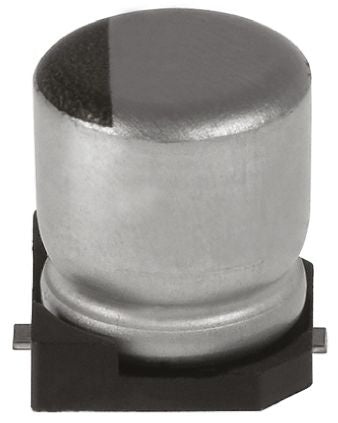

Nippon Chemi-Con 1500μF 6.3V dc Aluminium Electrolytic Capacitor, Surface Mount 10 x 10mm +105°C 10mm 4.5mm [EMZA6R3ADA152MJA0G]; 173-2702
0₫
Mã kho: 1732702
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1500 µF |
| Voltage | 6.3 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 10 x 10mm |
| Height | 10mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 10mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 4.5mm |
| Lifetime | 2000h |
| Series | MZA |
| Tolerance | ±20% |
| Equivalent Series Resistance | 80mΩ |
| Ripple Current | 850mArms |
| Polarised | Polar |
| Leakage Current | 3 μA |
