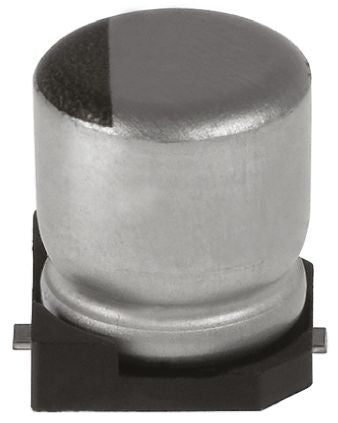

Nippon Chemi-Con 33μF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 5 x 5.8mm +105°C 5mm 1.4mm [EMZA250ADA330ME61G]; 756-8193
0₫
Mã kho: 7568193
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 33 µF |
Voltage | 25 V dc |
Mounting Type | Surface Mount |
Technology | Electrolytic |
Dimensions | 5 x 5.8mm |
Height | 5.8mm |
Minimum Operating Temperature | -55°C |
Diameter | 5mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 1.4mm |
Lifetime | 2000h |
Series | MZA |
Equivalent Series Resistance | 700mΩ |
Tolerance | ±20% |
Leakage Current | 3 μA |
Ripple Current | 160mArms |
Polarised | Polar |
