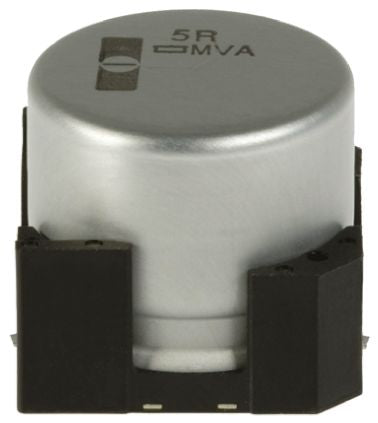

Nippon Chemi-Con 220μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 8 x 10mm +85°C 8mm 3.1mm [EMVA350ADA221MHA0G]; 173-2693
0₫
Mã kho: 1732693
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 35 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 8 x 10mm |
| Height | 10mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +85°C |
| Lead Pitch | 3.1mm |
| Lifetime | 2000h |
| Series | MVA |
| Leakage Current | 0.01 CV μA, 3 μA @ 20°C (After 2 min) |
| Ripple Current | 260mArms |
| Polarised | Polar |
| Tolerance | ±20% |
