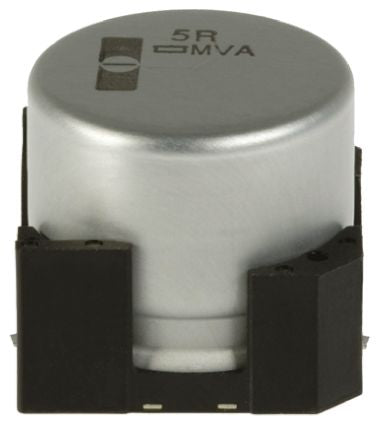

Nippon Chemi-Con 47μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 5 x 5.2mm +85°C 5mm 1.4mm [EMVA160ADA470ME55G]; 170-0438
0₫
Mã kho: 1700438
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 16 V dc |
| Mounting Type | Surface Mount |
| Technology | Electrolytic |
| Dimensions | 5 x 5.2mm |
| Height | 5.2mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 5mm |
| Maximum Operating Temperature | +85°C |
| Lifetime | 2000h |
| Lead Pitch | 1.4mm |
| Series | MVA |
| Tolerance | ±20% |
| Ripple Current | 44mArms |
| Polarised | Polar |
| Leakage Current | 0.01 CV μA, 3 μA @ 20°C (After 2 min) |
