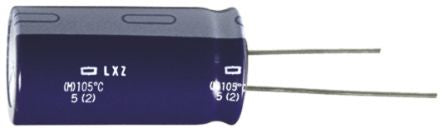

Nippon Chemi-Con 3300μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 16 x 40mm +105°C 16mm 7.5mm [ELXZ350ELL332ML40S]; 170-0424
0₫
Mã kho: 1700424
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3300 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16 x 40mm |
| Height | 40mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 16mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 8000h |
| Lead Pitch | 7.5mm |
| Series | LXZ |
| Equivalent Series Resistance | 30mΩ |
| Tolerance | ±20% |
| Ripple Current | 3710mArms |
| Leakage Current | 0.01 CV μA, 3 μA @ 20°C (After 2 min) |
