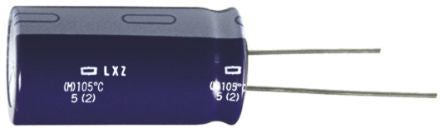

Nippon Chemi-Con 1200μF 35V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 30mm +105°C 12.5mm 5mm [ELXZ350ELL122MK30S]; 170-0416
0₫
Mã kho: 1700416
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1200 µF |
| Voltage | 35 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 x 30mm |
| Height | 30mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 7000h |
| Series | LXZ |
| Leakage Current | 0.01 CV μA, 3 μA @ 20°C (After 2 min) |
| Tolerance | ±20% |
| Ripple Current | 2310mArms |
| Equivalent Series Resistance | 50mΩ |
