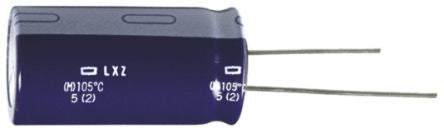

Nippon Chemi-Con 330μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 8 x 12mm +105°C 8mm 3.5mm [ELXZ160ELL331MH12D]; 170-0394
0₫
Mã kho: 1700394
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 330 µF |
| Voltage | 16 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 8 x 12mm |
| Height | 12mm |
| Minimum Operating Temperature | -55°C |
| Diameter | 8mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 3.5mm |
| Lifetime | 3000h |
| Series | LXZ |
| Equivalent Series Resistance | 240mΩ |
| Tolerance | ±20% |
| Leakage Current | 0.01 CV μA, 3 μA @ 20°C (After 2 min) |
| Ripple Current | 555mArms |
