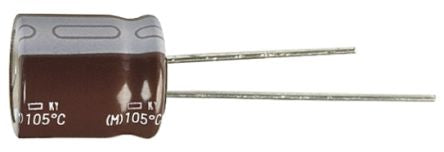

Nippon Chemi-Con 1500μF 6.3V dc Aluminium Electrolytic Capacitor, Through Hole 10 x 20mm +105°C 10mm 5mm 20mm [EKY-6R3ELL152MJ20S]; 170-0545
0₫
Mã kho: 1700545
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 1500 µF |
Voltage | 6.3 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 x 20mm |
Length | 20mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lifetime | 6000h |
Lead Pitch | 5mm |
Series | KY |
Tolerance | ±20% |
Leakage Current | 94.5 μA |
Equivalent Series Resistance | 46mΩ |
Ripple Current | 1400mArms |
