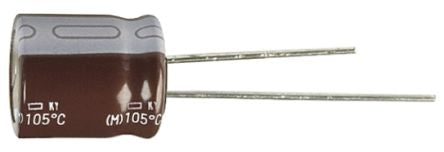

Nippon Chemi-Con 4.7μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 5 x 11mm +105°C 5mm 2mm 11mm [EKY-500ELL4R7ME11D]; 170-0539
0₫
Mã kho: 1700539
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 4.7 µF |
Voltage | 50 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 5 x 11mm |
Length | 11mm |
Minimum Operating Temperature | -40°C |
Diameter | 5mm |
Maximum Operating Temperature | +105°C |
Lifetime | 5000h |
Lead Pitch | 2mm |
Series | KY |
Tolerance | ±20% |
Leakage Current | 3 μA |
Ripple Current | 88mArms |
Equivalent Series Resistance | 1.9Ω |
