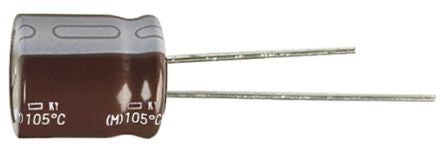

Nippon Chemi-Con 2200μF 50V dc Aluminium Electrolytic Capacitor, Through Hole 18 x 35.5mm +105°C 18mm 7.5mm 35.5mm [EKY-500ELL222MMP1S]; 170-0538
0₫
Mã kho: 1700538
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 2200 µF |
| Voltage | 50 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 18 x 35.5mm |
| Length | 35.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 18mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 10000h |
| Series | KY |
| Tolerance | ±20% |
| Ripple Current | 3680mArms |
| Equivalent Series Resistance | 17mΩ |
| Leakage Current | 1100 μA |
