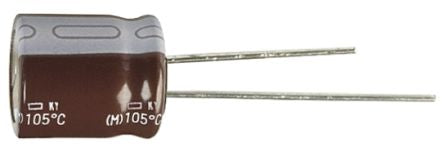

Nippon Chemi-Con 3900μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 18 x 31.5mm +105°C 18mm 7.5mm 31.5mm [EKY-250ELL392MMN3S]; 812-2723
0₫
Mã kho: 8122723
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 3900 µF |
| Voltage | 25 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 18 x 31.5mm |
| Length | 31.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 18mm |
| Maximum Operating Temperature | +105°C |
| Lifetime | 10000h |
| Lead Pitch | 7.5mm |
| Series | KY |
| Equivalent Series Resistance | 15mΩ |
| Tolerance | ±20% |
| Ripple Current | 4170mArms |
| Leakage Current | 975 μA |
