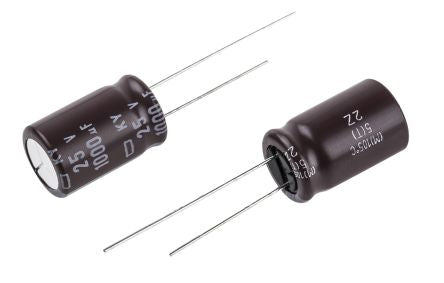

Nippon Chemi-Con 1000μF 25V dc Aluminium Electrolytic Capacitor, Through Hole 12.5 x 20mm +105°C 12.5mm 5mm 20mm [EKY-250ELL102MK20S]; 811-8691
0₫
Mã kho: 8118691
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 1000 µF |
| Voltage | 25 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 12.5 x 20mm |
| Length | 20mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 12.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 5mm |
| Lifetime | 10000h |
| Series | KY |
| Leakage Current | 250 μA |
| Tolerance | ±20% |
| Ripple Current | 1900mArms |
| Equivalent Series Resistance | 35mΩ |
