![Nippon Chemi-Con EKY-160ELL681MJ16S 8118682](http://nguyenxuong.com/cdn/shop/products/R7567698-01_6d0c4b96-24d4-4fdf-84e9-560de9e4839a_444x152.jpg?v=1594340766)

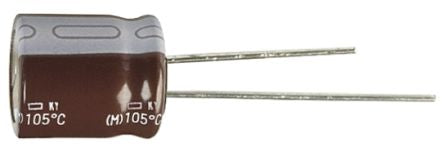

Nippon Chemi-Con 680μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 10 x 16mm +105°C 10mm 5mm 16mm [EKY-160ELL681MJ16S]; 811-8682
0₫
Mã kho: 8118682
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 680 µF |
Voltage | 16 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 x 16mm |
Length | 16mm |
Minimum Operating Temperature | -40°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lifetime | 7000h |
Lead Pitch | 5mm |
Series | KY |
Tolerance | ±20% |
Equivalent Series Resistance | 60mΩ |
Leakage Current | 108 μA |
Ripple Current | 1210mArms |
