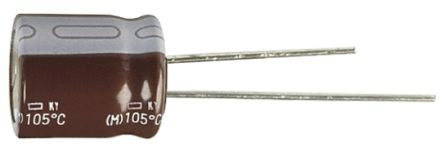

Nippon Chemi-Con 120μF 16V dc Aluminium Electrolytic Capacitor, Through Hole 6.3 x 11mm +105°C 6.3mm 2.5mm 11mm [EKY-160ELL121MF11D]; 811-8645
0₫
Mã kho: 8118645
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 120 µF |
Voltage | 16 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 6.3 x 11mm |
Length | 11mm |
Minimum Operating Temperature | -40°C |
Diameter | 6.3mm |
Maximum Operating Temperature | +105°C |
Lead Pitch | 2.5mm |
Lifetime | 8000h |
Series | KY |
Leakage Current | 19.2 μA |
Ripple Current | 340mArms |
Tolerance | ±20% |
Equivalent Series Resistance | 220mΩ |
