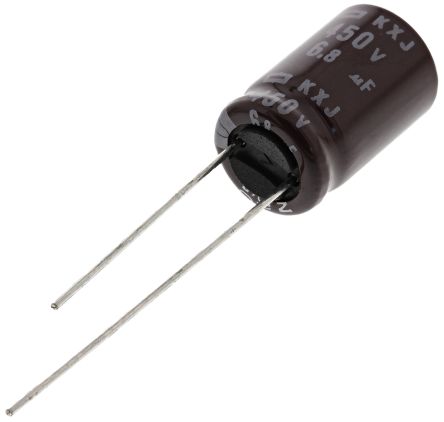

Nippon Chemi-Con 6.8μF 450V dc Aluminium Electrolytic Capacitor, Through Hole 10 x 16mm +105°C 10mm 5mm [EKXJ451ELL6R8MJ16S]; 170-0372
0₫
Mã kho: 1700372
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Capacitance | 6.8 µF |
Voltage | 450 V dc |
Mounting Type | Through Hole |
Technology | Electrolytic |
Dimensions | 10 x 16mm |
Height | 16mm |
Minimum Operating Temperature | -25°C |
Diameter | 10mm |
Maximum Operating Temperature | +105°C |
Lifetime | 12000h |
Lead Pitch | 5mm |
Series | KXJ |
Leakage Current | 222 μA |
Tolerance | ±20% |
Ripple Current | 105mArms |
