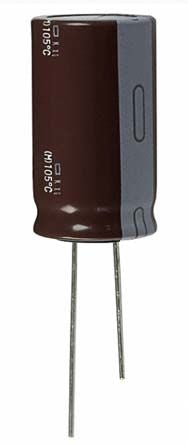

Nippon Chemi-Con 47μF 350V dc Aluminium Electrolytic Capacitor, Through Hole 16.5 (Dia.) x 21.5mm +105°C 16.5mm 7.5mm [EKXG351ELL470ML20S]; 144-3892
0₫
Mã kho: 1443892
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 47 µF |
| Voltage | 350 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 16.5 (Dia.) x 21.5mm |
| Height | 21.5mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 16.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 10000h |
| Series | KXG |
| Tolerance | ±20% |
| Leakage Current | 758 μA |
| Dissipation Factor | 0.0024 |
| Ripple Current | 1075mArms |
| Polarised | Polar |
