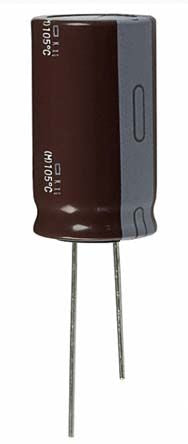

Nippon Chemi-Con 220μF 250V dc Aluminium Electrolytic Capacitor, Through Hole 18.5 (Dia.) x 33mm +105°C 18.5mm 7.5mm [EKXG251ELL221MMN3S]; 144-3887
0₫
Mã kho: 1443887
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Capacitance | 220 µF |
| Voltage | 250 V dc |
| Mounting Type | Through Hole |
| Technology | Electrolytic |
| Dimensions | 18.5 (Dia.) x 33mm |
| Height | 33mm |
| Minimum Operating Temperature | -40°C |
| Diameter | 18.5mm |
| Maximum Operating Temperature | +105°C |
| Lead Pitch | 7.5mm |
| Lifetime | 10000h |
| Series | KXG |
| Ripple Current | 2545mArms |
| Dissipation Factor | 0.002 |
| Tolerance | ±20% |
| Leakage Current | 2300 μA |
| Polarised | Polar |
